ABOUT THIS PRODUCT

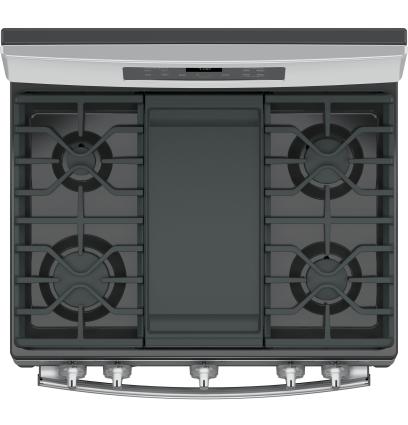

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

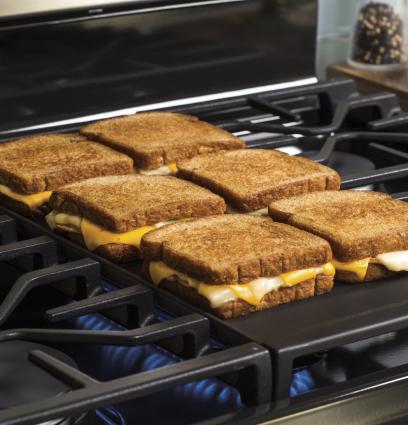

Extra-large integrated non-stick griddle
Cook up to six grilled cheeses at once on the industry’s largest integrated griddle

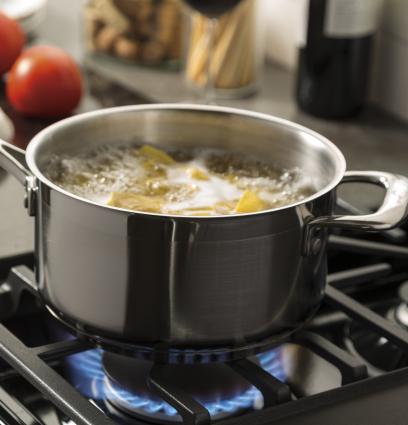

15,000 BTU Power Boil Burner
Delivers high heat for fast boiling

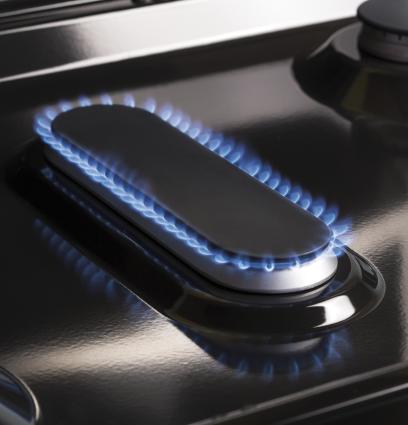

Center oval burner
Large oval fifth burner is ideal for griddle cooking

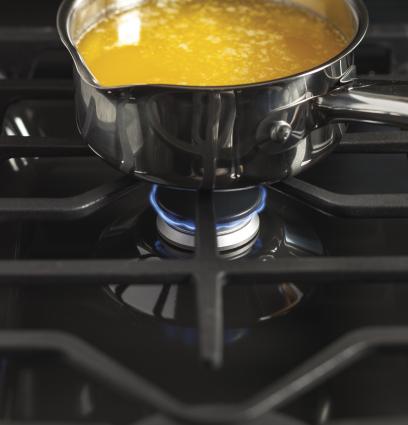

Precise Simmer burner
Delicate foods don’t burn with low, even heat

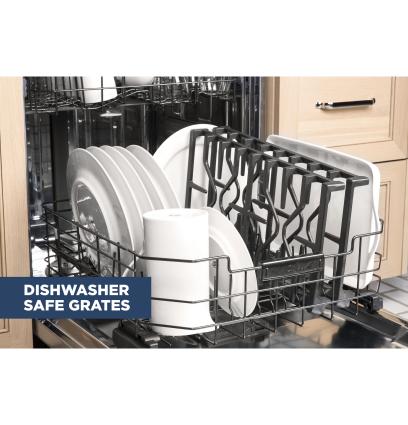

Heavy duty, dishwasher-safe grates
Easily and safely clean grates in the dishwasher

SPECS & DETAILS
-
FEATURES
Ignition System Electronic Burner - Right Rear 12,000 BTU Oven Control Features Audible Preheat Signal, Auto Self Clean, Control Lock Capability, Delay Bake Option Oven Rack Features 2 Flat Nickel Racks, 6 Rack Positions Burner - Left Rear 5,000 BTU Precise Simmer Oven Cleaning Type Self-Clean Product Type Free-Standing Single Oven Cooktop Type Continuous Grates Cooktop Burner Grate Material Heavy Cast Iron Fuel Type Natural Gas (factory set) Interior Oven Light 1 Incandescent Control Location Front Cooktop Burner Grate Features Continuous Grates Control Type Electronic Touch Burner - Left Front 15,000 BTU Drawer Type Storage Sabbath Mode Yes Cooking Technology Traditional Configuration Range with Storage Drawer OU Certified No Cooktop Burner Type Sealed Burner - Right Front 9,500 BTU Cooktop Surface Edge-to-Edge, Gray, One-Piece Upswept, Porcelain-Enamel -
APPEARANCE
Cooktop Burner Grate Color Matte Black Handle Designer Style Oven Door Features Big View Oven Window Control Knobs Dark Gray Color Appearance Stainless Steel/Gray -
WARRANTY
Parts Warranty Limited 1-year entire appliance Labor Warranty Limited 1-year entire appliance Warranty Notes See written warranty for full details -
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000''s BTU''s) (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0 Volts/Hertz/Amps 120v; 60Hz; 15A Top Burner BTU Rating - LP (000''s BTU''s) (1) 12.0; (1) 9.5; (1) 15.0; (1) 5.0 Bake/Broiler BTU Rating - Nat. Gas (000''s BTU''s) 16.0 Bake / 13.5 Broiler Bake/Broiler BTU Rating - LP (000''s BTU''s) 16.0 Bake / 12.0 Broiler -
WEIGHTS & DIMENSIONS
Net Weight 190 Depth Without Handle 26.25 Height to Cooking Surface (in.) 36 - 36 1/2 Cabinet Width 30.000000 Approximate Shipping Weight 210 Overall Width 30.000000 Overall Height 47.250000 Overall Depth 28.750000 Depth with Door Open 46.25 Oven Interior Dimensions (W x H x D) (in.) 24 x 19 x 19 -
CAPACITY
Total Capacity (cubic feet) 5.000000
